Equivalent Specifications:

CZ122	BS218
CuZn40Pb2

Nominal Composition:

Copper	57 to 59%
Lead	1.6 to 2.5%
Iron	0.30% Max
Zinc	Balance

Key Features:

» Machinability rating of 100%.
» Excellent capacity for hot forming.
» Good Corrosion resistance.
» Excellent suitability for Brazing and Soldering.

Yield Stress	150 MPa Min.
Tensile Strength	380 MPa Min.
Hardness Brinell	90 to 160 HB
Elongation	18 Min.

Key Features:

IS 319- I/ CW614N/ CZ 121 finds its use in a wide variety of high speed machined components, architectural products, hinges, locks, butts, screws, nuts and bolts.

---

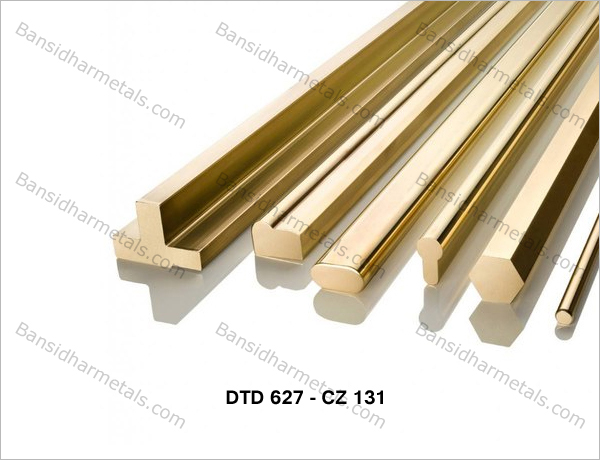

DTD 627

CZ131 or commonly known as DTD 627 in the Asian Sub-continent, is a riveting and turning brass quality grade with improved ductility. This alloy offers a good corrosion resistance along with high strength characteristics which results in excellent formation for bending and cold heading. CZ131 contains higher amount of Copper percentage which makes it an ideal choice for components that require crimping and machining on the head parts.

Equivalent Specifications:

CW606N – EN12164	UNS C 35300
CZ131	CuZn37Pb2

Nominal Composition:

Copper	61 to 63%
Lead	1.50 to 2.50%
Iron	0.20% Max
Other Impurities	0.50% Max
Zinc	Remainder

» Good Corrosion resistance

» Improved Ductility with Good strength.

» Excellent for Hot Forming and Bending

Tensile Strength	350 Mpa Minimum
Elongation	22 Min.

Typical Applications:

DTD 627 is generally used for those parts where hot forming is of prime importance. It finds its applications in Electrical components, auto parts, headed components, plumbing and sanitary fittings and watch components .
